Sensor & Humidity Controller

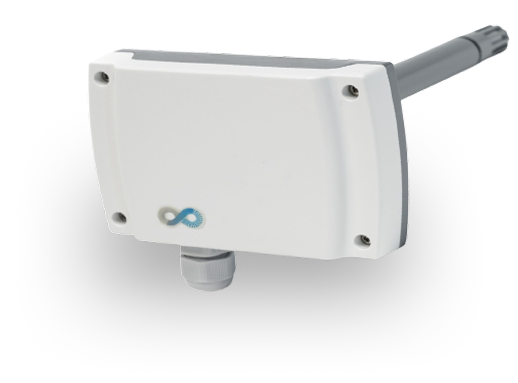

DHS (Duct RH% Sensor)
Request a quote
Use
Measures humidity in return air ducts for accurate control.
Specifications
- Range: 0–100% RH
- Output: 0–10 Vdc (optional 4–20 mA)
- Supply Voltage: 15–28 Vac or 15–36 Vdc
- Accuracy: ±3% RH (optional ±2%)
- Response Time: ≤10s
- Options: LCD display, SPDT relays

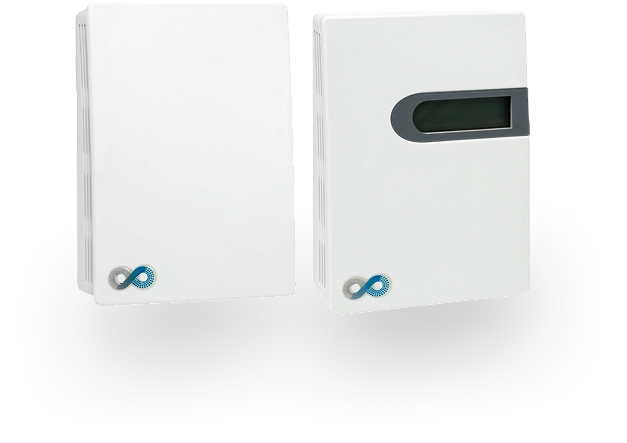

RHS (Room RH% Sensor)
Request a quote
Use
Controls humidification in rooms with setpoint adjustment and optional BACnet.
Specifications
- Range: 0–100% RH
- Output: 0–10 Vdc (optional 4–20 mA)
- Supply Voltage: 15–28 Vac or 15–36 Vdc
- Accuracy: ±3% RH (optional ±2%)
- Response Time: ≤10s
- Options: LCD display, SPDT relays

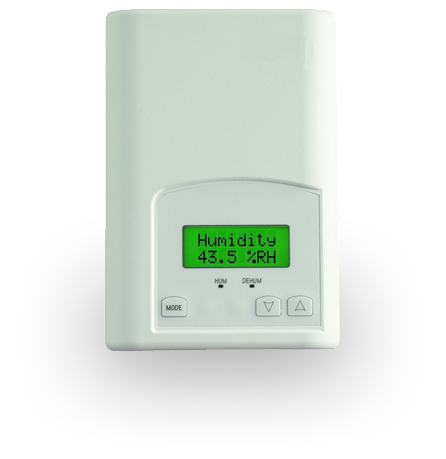

RHC (Room RH% Controller)
Request a quote
Use
Controls humidification in rooms with setpoint adjustment and optional BACnet.
Specifications
- Range: 0–95% RH
- Setpoint Range: 10–90% RH
- Supply Voltage: 19–30 Vac
- Accuracy: ±5% RH
- Options: BACnet MS/TP
Other Controls Products
Safety Control
Stops humidifier if duct humidity exceeds the set point.
